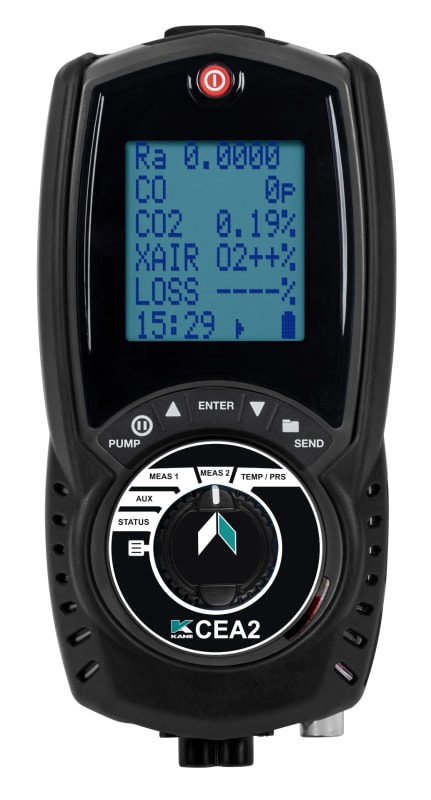

KANE-CEA2

Combustion Efficiency Analyser with CO

KANE-CEA2

Combustion Efficiency Analyser with CO

  • Test boilers up to 5MW & 50mbar stack draught
  • Save fuel, reduce pollution & increase efficiency
  • Payback in months: 1% efficiency = 1% lower fuel bill
  • Measure flue stack temp & CO2 in real time
  • Calculate O2, combustion efficiency & excess air
  • Print results to optional KANE-IRP3 printer
  • Large display & easy to use rotary dial
  • Long life NDIR CO2 sensor

Independently tested by TUV SUD to EN50379 - Use for BS7967 & TB143

Features

  • High capacity water trap & particle filter
  • Unique long life NDIR CO2 sensor
  • Real time measurements & calculations
  • Large display & unique rotary dial
  • Rugged, battery powered go anywhere analyser
  • View, hold, store & print test results to optional KANE-IRP3 printer
  • Worklight

Options

  • High temp & longer length probes
  • KANE-IRP3 infra red printer
  • KANE LIVE wireless module
  • UKAS calibration certificate
€1 432,00 exc VAT
Configure

Measures

-CO2 to 20% - Flue temperature to 600°C

Calculates

  • O2, combustion efficiency & excess air
  • Net temperature

Fuel Types

  • Natural Gas, LPG & Biogas
  • Propane & Butane
  • Light & Heavy Oil
  • Coke, Coal & Wood pellets

Box Contents

  • Boiler Efficiency Analyser supplied with SM50056 high capacity water trap & filter, CP2 probe, 3 x AA rechargeable batteries, USB1 charger & MSC00237 protective pouch
