KANE9206 QUINTOX

- Emissions Monitoring Solution

KANE9206 QUINTOX

- Emissions Monitoring Solution

Fully featured emissions analyser

Features

Large Graphical Display Up to 15 lines of text/data can be displayed

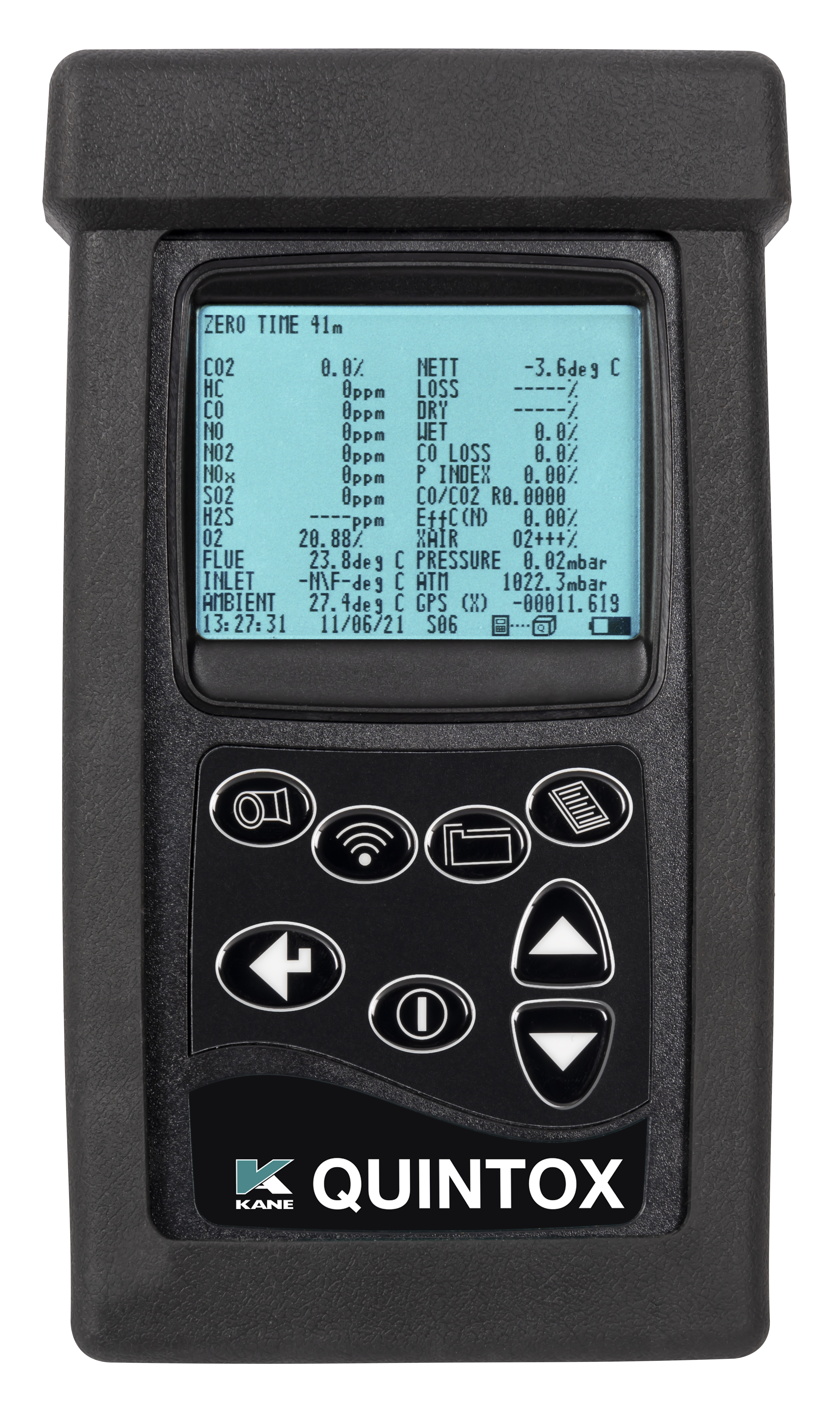

Wireless link from the handset to the base unit Offering cable free connection

GPS Location Pinpoint exact test location

Wireless & USB connection to PC Use the KANE LIVE software to monitor readings in “real time”

Large Internal memory Can store up to 64,000 tests

Main Purge Allows sensor zeroing without the need to withdraw the probe from the flue

Refreshes the sensors during long term monitoring

Automatically protects the sensor from being over-ranged

Active Flow Control Compensates for sample pressure fluctuation & filter blocking by adjusting the pump speed to maintain a set sample gas flow rate

Built in Printer with additional output to optional portable IR printer IR printer ideal when working away from the base unit.

Differential Pressure measurement with Pitot flow calculation.

User selectable languages

User selectable standard fuels by country

User defined ‘special’ fuels

For more information

Get In Touch

: 0800 059 0800

Measures

(Standard Kit) - 02 0-25% - CO (H2 Compensated) - 0-4,000ppm - Pressure 0-150 mbar - Efficiency 0-100% - Temperature 0-1100°C with optional probe

Calculates

  • CO2 (calculated) 0-20%

Fuel Types

  • Natural Gas
  • Butane
  • Propane
  • LPG
  • 28 sec oil
  • 35 sec oil
  • Wood pellets
  • User fuel
  • Heavy Oil

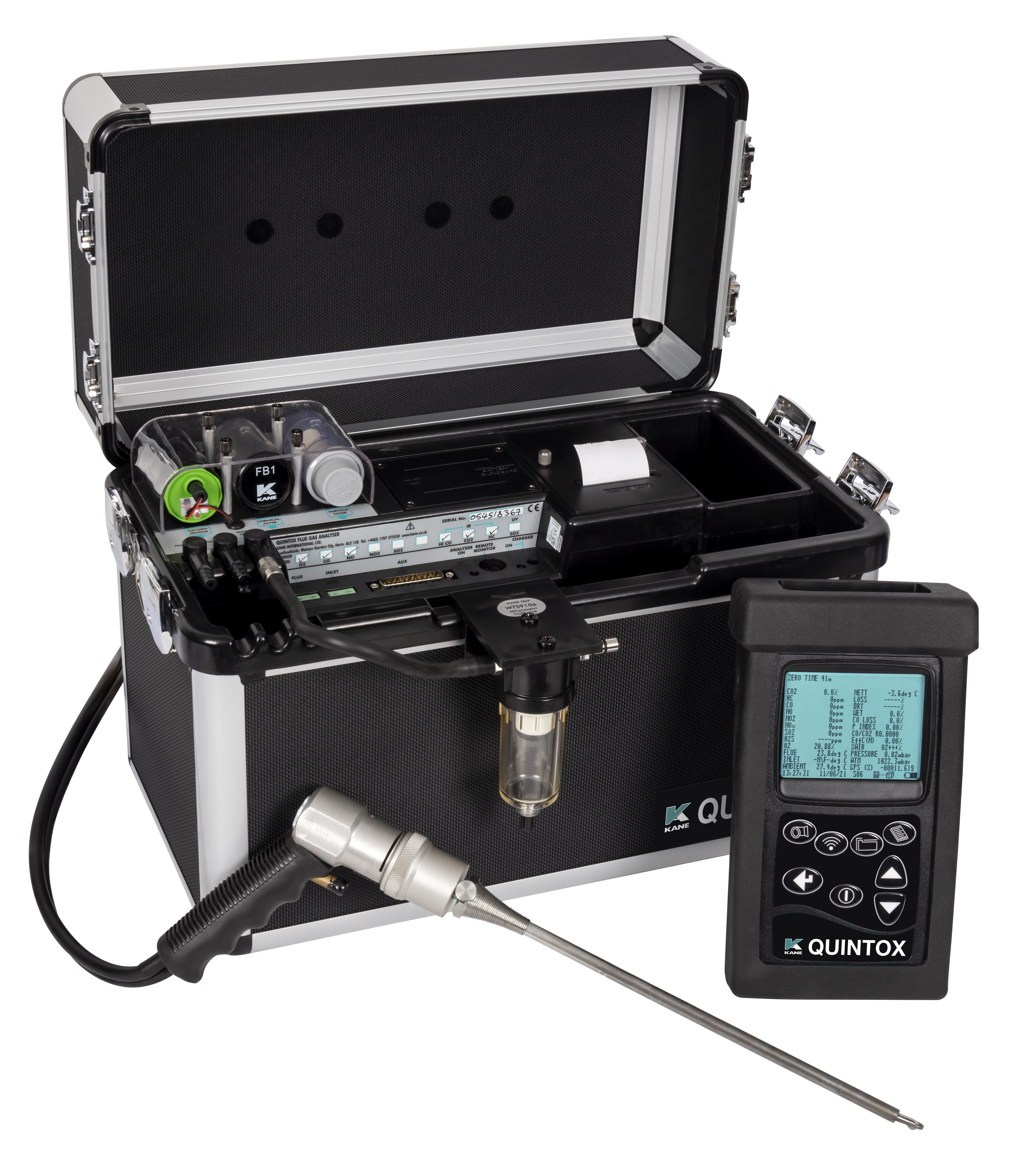

Box Contents

  • Analyser
  • Handset with cable
  • Charger
  • Manual
  • Calibration report
